Home > Products > Accessories And Consumables > Welding Torch > Intelligent Dual Pendulum Welding Head FWH20-ES10A

View the big picture

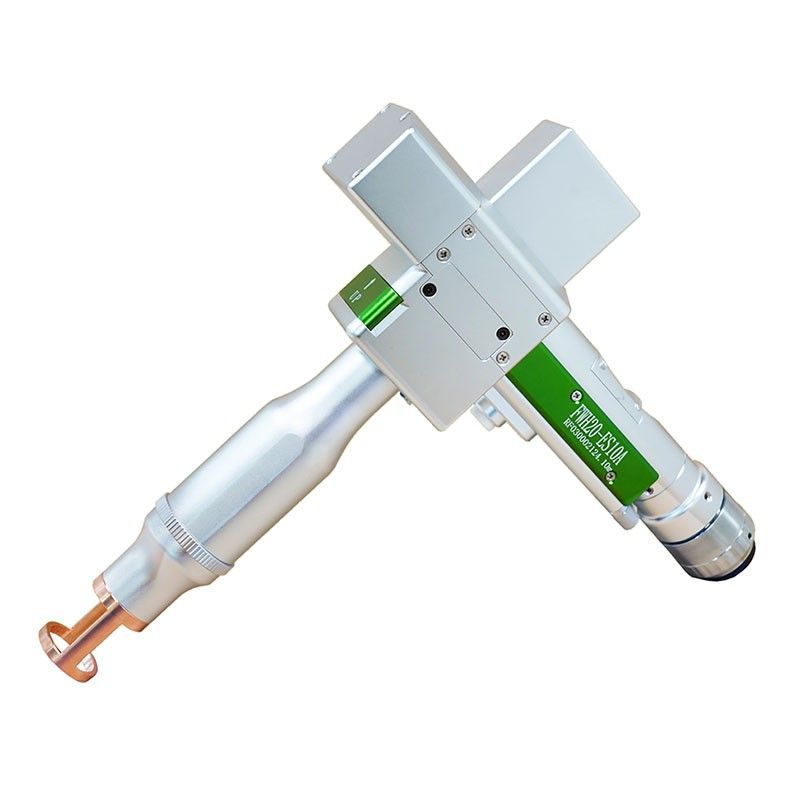

Intelligent Dual Pendulum Welding Head FWH20-ES10A

Payment Type:	L/C,T/T,D/P,D/A,Paypal
Incoterm:	FOB,DDP,CFR,DDU,CIF,Express Delivery,EXW,FAS,DAF,FCA,CPT,DES,CIP,DEQ
Min. Order:	1

Contact Now

Add to Basket
Share to:

Basic Info

Model No.: Intelligent Dual Pendulum Handheld Energy Storage Welding Head FWH20-ES10A

Brand: Zixu

Fiber Optic Interface: QBH

Wavelength Range: 1070±20nm

Rated Power: ≤3000W

Collimating Focal Length: 50mm

Focus Distance: 200mm

Scanning Speed: 20000mm/s

Auxiliary Air Pressure: ≥0.5-0.8Mpa

Adjustable Focus Range: ±10mm

Weight: 1.26KG

Additional Info

Transportation: Ocean,Express

Place of Origin: China

Payment Type: L/C,T/T,D/P,D/A,Paypal

Incoterm: FOB,DDP,CFR,DDU,CIF,Express Delivery,EXW,FAS,DAF,FCA,CPT,DES,CIP,DEQ

Product Description

Item No.: FWH20-ES10A

★ Optional scanning types include circular, rectangular, linear, and filling modes, enabling multi-functional and efficient welding.

★ Intelligent optical path protection system with real-time monitoring of working status.?

★ High-threshold optical components for better welding results.?

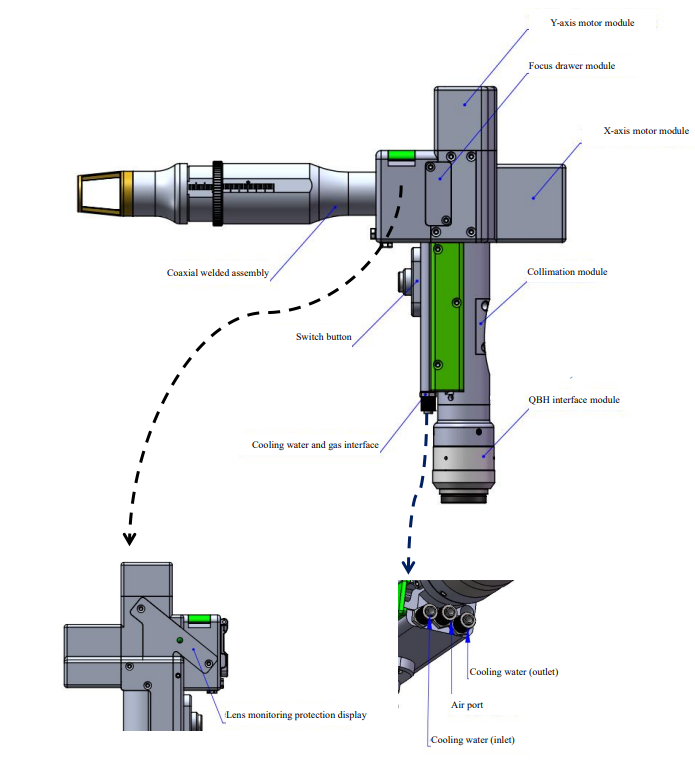

★ All lenses adopt a drawer-type module design for convenient replacement.

★ Full-body water-cooled design for longer-lasting stability.?

★ Ergonomic design for comfortable grip and easy handling.

Application scenarios: new energy industry, lithium battery industry.

Name	Intelligent double swing hand holding energy storage welding head
Type	FWH20-ES10A-V4
Fiber interface	QBH
Wavelength scope	1070±20nm
Rated power	≤3000W
Collimation focal length	50mm
Focus focal length	200mm
Scanning speed	20000mm/s
Scanning range	≥0.5-0.8Mpa
Auxiliary pressure	1.26KG

Precautions

※ To ensure personal safety, wear the special fiber laserprotective glasses before operation.

※ It is necessary to keep the product clean and prevent thecooling liquid, condensate water or Other foreign matter fromintruding into the cavity, or the functional contaminationandfunctional impact of related parts will be incurred.
