Home > Products > Accessories And Consumables > Welding Torch > Intelligent Dual Pendulum Welding Head FWP30-V10

View the big picture

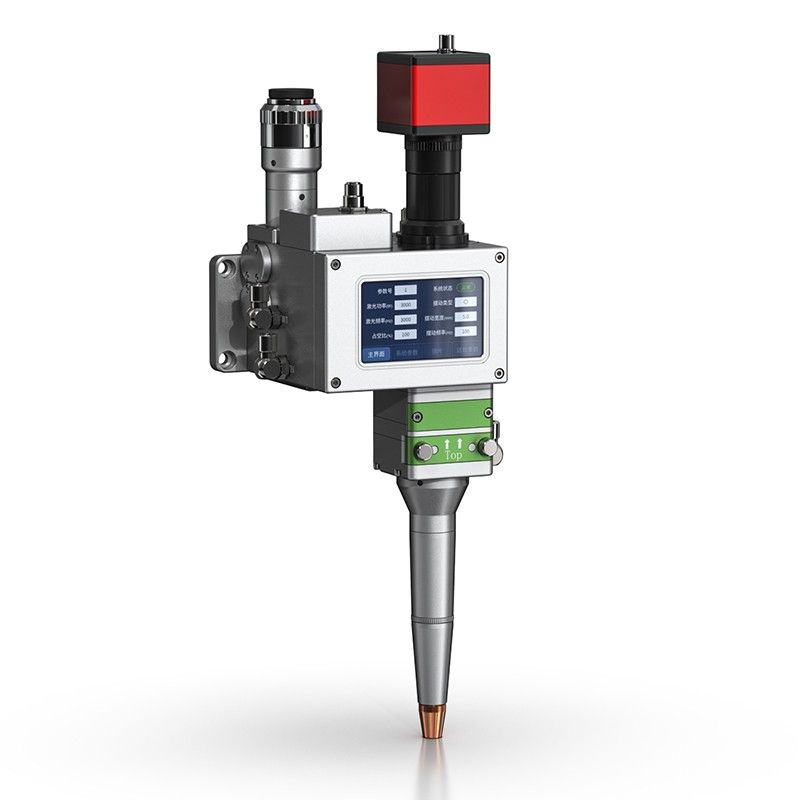

Intelligent Dual Pendulum Welding Head FWP30-V10

Payment Type:	L/C,T/T,D/P,D/A,Paypal
Incoterm:	FOB,CFR,DDP,DDU,CIF,Express Delivery,EXW,FAS,FCA,DES,DAF,CPT,CIP,DEQ
Min. Order:	1

Contact Now

Add to Basket
Share to:

Basic Info

Model No.: Intelligent Dual Pendulum Welding Head FWP30-V10

Brand: Zixu

Fiber Optic Interface: QBH

Wacelength Range: 1070±20nm

Rated Power: ≤3000W

Collimating Focal Length: 100mm

Focus Distance: 200/250/300/350mm

Scan Range: X-axis:0-5mm,Y-axis:0-5mm

Intelligent Protection Function: Have

Auxiliary Gas: ＞0.5-0.8Mpa coaxial/axial

Effective Aperture: 20mm

Weight: 2.9KG

Additional Info

Transportation: Ocean,Express

Place of Origin: China

Payment Type: L/C,T/T,D/P,D/A,Paypal

Incoterm: FOB,CFR,DDP,DDU,CIF,Express Delivery,EXW,FAS,FCA,DES,DAF,CPT,CIP,DEQ

Product Description

Item No.: FWP30-V10

★ Functional application: welding.

★ Independently developed control system, supporting offline and online operation.

★ 8 types of light spot modes, allowing arbitrary switching of process applications.

★ All lenses adopt a drawer-type modular design for convenient replacement.?

★ High-threshold optical components for better welding results.

★ Full-body water-cooled design for longer-lasting stability.?

★ Integrated CCD module, which can be equipped with vision software or weld tracking system.

★ Intelligent protection system with real-time monitoring of the entire optical system and real-time feedback of working status.

Application scenarios: sheet metal industry, hardware industry, aviation industry, new energy industry.

Fiber interface	QBH
Wavelength scope	1070±20nm
Rated power	≤4000W
Collimation focal length	100mm
Focus focal length	200/250/300/350mm
Scanning Range	X-axis:0-5mm,Y-axis:0-5mm
Intelligent protection function	Yes
Auxiliary gas	Coaxial/paraxial
Effective clear perture	24mm
Weight	2.9KG

Precautions

※ To ensure personal safety, wear the special fiber laserprotective glasses before operation.

※ It's necessary to keep the product clean and prevent thecooling liquid, condensate water or Other foreign matter fromintruding into the cavity, or the functional contaminationandfunctional impact of related parts will be incurred.
