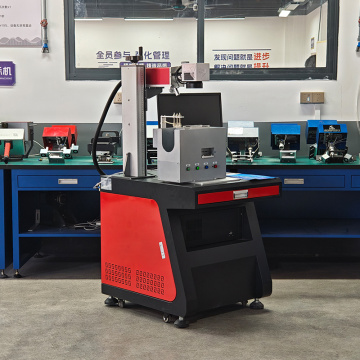

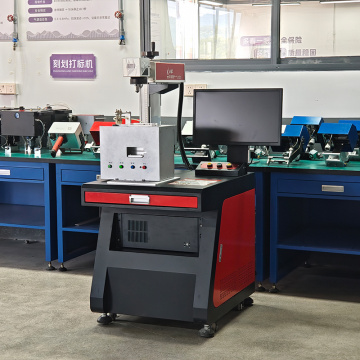

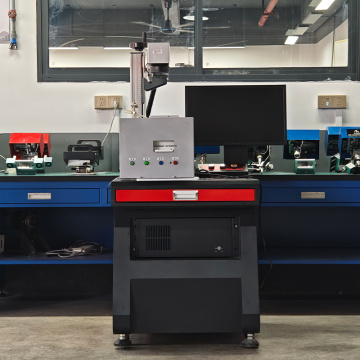

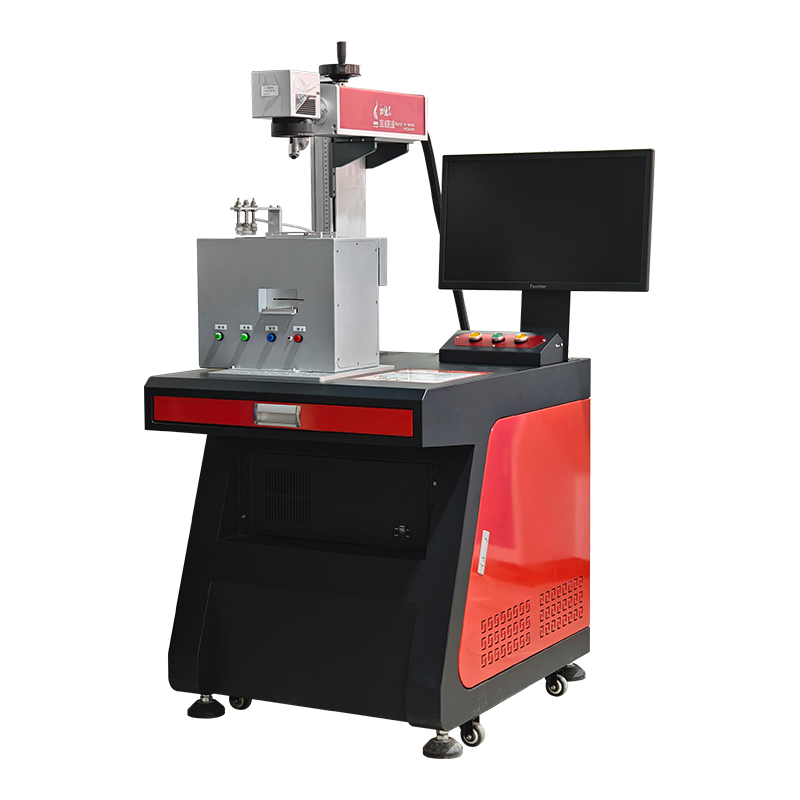

Automatic Nameplate MOPA Fiber Laser Marking Machine
Automatic Nameplate MOPA Fiber Laser Marking Machine
Automatic Nameplate MOPA Fiber Laser Marking Machine
Automatic Nameplate MOPA Fiber Laser Marking Machine
Automatic Nameplate MOPA Fiber Laser Marking Machine
Automatic Nameplate MOPA Fiber Laser Marking Machine
  • Automatic Nameplate MOPA Fiber Laser Marking Machine
  • Automatic Nameplate MOPA Fiber Laser Marking Machine
  • Automatic Nameplate MOPA Fiber Laser Marking Machine
  • Automatic Nameplate MOPA Fiber Laser Marking Machine
  • Automatic Nameplate MOPA Fiber Laser Marking Machine
  • Automatic Nameplate MOPA Fiber Laser Marking Machine
View the big picture

Automatic Nameplate MOPA Fiber Laser Marking Machine

    Payment Type: T/T,D/A,D/P,L/C,Paypal
    Incoterm: FOB,DDU,CFR,Express Delivery,CIF,EXW,DAF,FAS,DES,FCA,CPT,CIP,DEQ,DDP
    Min. Order: 1

Basic Info

Model No.: Fully Automatic Nameplate MOPA Fiber Laser Marking Machine 20W 30W 50W 60W

Brand: Zixu

Laser Type: MOPA Fiber

Laser Brand: IPG, JPT, Raycus, MAX or customize

Laser Power: 20W, 30W, 50W, 60W

Work Area: 110 * 110mm or customize

Laser Wavelength: 1065 ± 10nm

Beam Quality (BBP): ≤ 1.2㎡

Positioning Speed: 8000 ~ 23000mm/s

Scanning Speed: 5000 ~ 12000mm/s

Writing Speed: 450 ~ 600cps

Repeat Accuracy: ± 0.002mm

Laser Lifespan: ≥ 100,000hrs

Cooling Method: Air cooling

Power Input: 100 ~ 240VAC @ 50 / 60 Hz

Operation Temperature: 10 ~ 40℃ or 50 ~ 104℉

Storage Temperature: -10 ~ 60℃ or 14 ~ 140℉

Relative Humidity:: 5 ~ 75%, no condensation

Dimension: 800 * 650 * 1450mm

N.W.: 115kg

Additional Info

Packaging: Wood Carton, 950 * 800 * 1250mm, 145kg

Transportation: Ocean,Express

Place of Origin: China

Payment Type: T/T,D/A,D/P,L/C,Paypal

Incoterm: FOB,DDU,CFR,Express Delivery,CIF,EXW,DAF,FAS,DES,FCA,CPT,CIP,DEQ,DDP

Product Description

?
20W 30W 50W 60W 100W 200W 300W MOPA Fiber Laser Marking Machine Customize Fixture Rotary Marking Deep Engraving Metal Ring Bar Pin Rod Plastic Bulb Shell Printing
?
Our MOPA Fiber Laser Marking Machine is more than a standalone Laser Marking Machine—it’s a fully-integrated Marking Machine cell that replaces both Dot Peen Marking Machine and Pneumatic marking machine lines in one footprint. A PLC-controlled automatic name-plate fixture starts the cycle: the vertical motor stroke lifts the stack into position, while photoelectric sensors—borrowed from high-speed Pneumatic marking machine feeders—guarantee each plate is referenced to ±0.05 mm before the laser fires. Manual quick-release guides let the same fixture accept aluminum, stainless or plastic plates from 20 × 40 mm up to 150 × 90 mm, so you can swap from automotive VIN tags to desktop PC ID cards without the tool changes a Dot Peen Marking Machine would demand.
?
When marking is complete, a cylinder-driven suction cup on an X-axis beam—originally designed for off-loading Pneumatic marking machine parts—glides over, picks the plate and releases it at the downstream bin. A built-in gravity sensor counts down from the original stack; once zero is reached the Laser Marking Machine pauses and signals MES, exactly like legacy Dot Peen Marking Machine counters. The MOPA source delivers a flat-top beam with <1 % power jitter, so 1 × 1 mm DataMatrix or QR codes scan first-time every time—something ordinary Q-switched Marking Machine units often fail to achieve. Insert a stack, press start: the entire load is processed automatically, giving you Laser Marking Machine quality with Marking Machine autonomy, minus the noise, pins or compressed-air bills of a Pneumatic marking machine.
?
marking machineFiber laser

?

?
?
