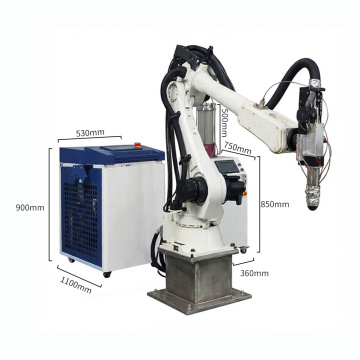

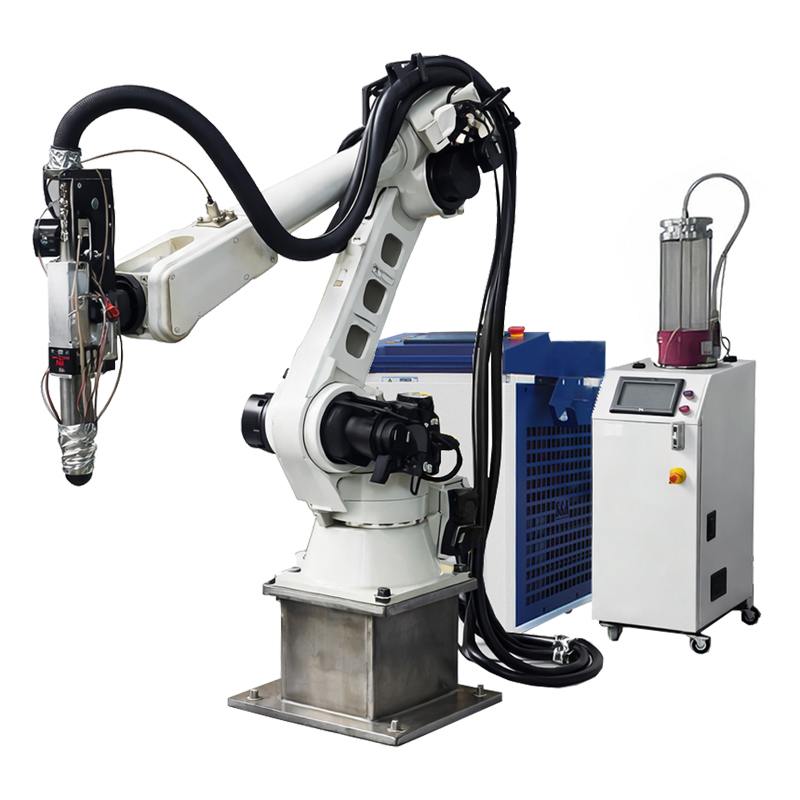

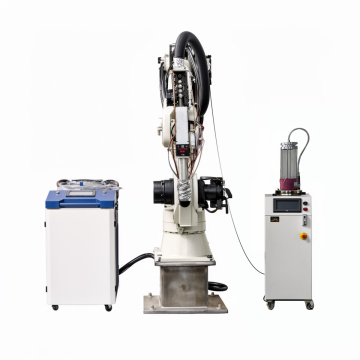

Zixu 6 Axis Robotic Laser Cladding Machine
Zixu 6 Axis Robotic Laser Cladding Machine
Zixu 6 Axis Robotic Laser Cladding Machine
Zixu 6 Axis Robotic Laser Cladding Machine
Zixu 6 Axis Robotic Laser Cladding Machine
Zixu 6 Axis Robotic Laser Cladding Machine
  • Zixu 6 Axis Robotic Laser Cladding Machine
  • Zixu 6 Axis Robotic Laser Cladding Machine
  • Zixu 6 Axis Robotic Laser Cladding Machine
  • Zixu 6 Axis Robotic Laser Cladding Machine
  • Zixu 6 Axis Robotic Laser Cladding Machine
  • Zixu 6 Axis Robotic Laser Cladding Machine
View the big picture

Zixu 6 Axis Robotic Laser Cladding Machine

    Payment Type: T/T,D/P,D/A,Others
    Incoterm: FOB,CFR,DDP,DDU,Express Delivery,CIF,EXW,FAS,DAF,FCA,DES,CPT,CIP,DEQ
    Min. Order: 1 Set/Sets

Basic Info

Model No.: Zixu 6 Axis Robotic Laser Cladding Machine

Brand: Zixu

Laser Type: CW Fiber

Laser Brand: MAX, Raycus, BWT or customize

Laser Power: 3000W / 6000W

Laser Wavelength: 1080 ± 5nm

Axis Control: X, Y, Z, Rotary, Tilting

Travel Length Of Motion: 1000 * 600 * 400mm or customize

Moving Module Accuracy: ± 0.005mm or customize

Processing Dimension: ≤ 800 * 400 * 400mm or customize

Dilution Ratio: ≤ 3%

Cladding Thickness: 0.2 ~ 1.5mm or customize

Powder Size: φ 20 ~ 300μm

Powder Feeding Speed: 30 ~ 150g/min

Powder Feeder Capacity: 2L or customize

Cooling Method: Water cooling

Air Supply: 0,4MPa compressed air or protective Argon, Nitrogen, etc.

Air Blowing Mode: Coaxial blowing, side blowing or mixed blowing.

Power Input: 360 ~ 440VAC 3-phase @ 50 / 60 Hz

Operation Temperature: 10 ~ 40℃ or 50 ~ 104℉

Storage Temperature: -10 ~ 60℃ or 14 ~ 140℉

Relative Humidity: 10 ~ 80%, no condensation

Additional Info

Transportation: Ocean,Land,Air,Express,Others

Place of Origin: China

Certificate: CE,FDA

Port: Chongqing,Guangzhou,Shenzhen

Payment Type: T/T,D/P,D/A,Others

Incoterm: FOB,CFR,DDP,DDU,Express Delivery,CIF,EXW,FAS,DAF,FCA,DES,CPT,CIP,DEQ

Product Description

?

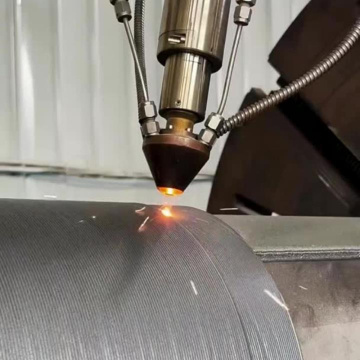

This is our standard Laser Cladding Machine, which combines the precise positioning capabilities of a Laser Marking Machine.? It features five-axis linkage with X-Y-Z axis travel, rotation, and tilting, suitable for Laser Cladding, build-up welding, and hardening of metal workpieces up to 800×400×400 mm. It can also function as an "Other" type of Marking Machine, directly applying permanent markings such as serial numbers and QR codes onto the cladding layer. Laser cladding uses the high instantaneous energy of a laser to melt and deposit metal powder onto the target workpiece, forming a dense metal layer that can replace traditional processes such as chrome plating for rust prevention.? By using welding materials such as tin, it can also perform large-width build-up welding that is difficult to achieve with conventional laser welding machines. When not using metal powder, the equipment can switch to hardening mode, using high-energy lasers to perform surface heat treatment on metal alloys such as steel, causing carbon atoms to precipitate from deep within the workpiece and accumulate near the surface, resulting in a dark gray appearance and increased hardness—this is laser hardening.
?
