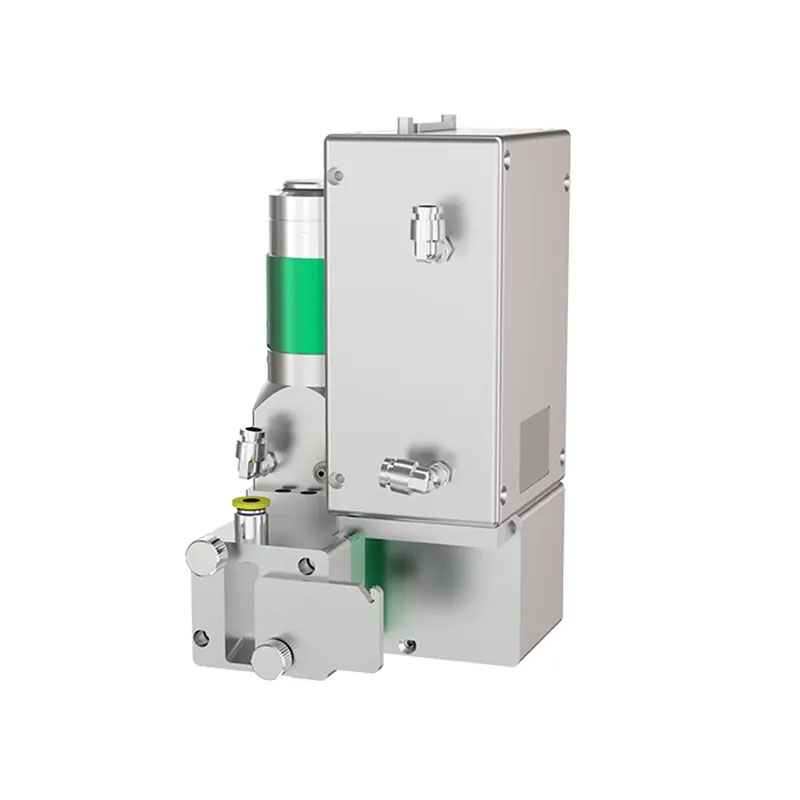

The BF03F is not a traditional
Marking Machine, but a "dedicated laser scalpel for edge banding"—a 3 kW laser, connected via a QBH interface, can fuse ABS edge banding tape to the sheet material in 0.3 seconds, five times faster than the mechanical pressing of a
Dot Peen Marking Machine, while achieving edge strength comparable to the impact welding of a
Pneumatic marking machine, all without noise,
Consumables, or mechanical wear. Its 60 mm oscillation range allows the same edge banding head to handle 18 mm thick cabinet panels as well as 6 mm thick automotive interior parts, truly realizing "one BF03F replacing three traditional
Laser Marking Machine workstations."
Product Features
?
- Standard QBH fiber optic interface: Plug and play, compatible with mainstream lasers such as IPG, nLight, and Chuangxin. What was a Laser Marking Machine for QR code printing in the morning can instantly transform into a dedicated edge banding line after switching to the BF03F in the afternoon.
?
- Protective
Lens case + dust cover: Lens replacement is completed in 30 seconds, similar to changing a field lens on a marking machine, with zero dust intrusion and an MTBF > 20,000 hours of continuous 24-hour operation.
?
- 4 mm large spot optical solution: Flat-top energy distribution prevents arcing even with adhesive coating thickness deviations of ±0.2 mm, and the process window is 3 times wider than the "needle pressure-temperature" coupling curve of traditional dot-peen marking machines.
?
- High-efficiency water cooling + air knife: Water outlet temperature set at 22℃, lens temperature difference < 2℃, and long-term edge sealing power does not decrease; air knife wind speed of 30 m/s uses compressed air at the level of a pneumatic marking machine to protect the lens instead of driving the punch, reducing energy consumption by 40%.
?
- Dedicated Laser Edge Banding Control System: One-click switching between three process packages: "furniture thick board / automotive thin board / packaging film," with automatic parameter matching. Supports integration with external PLCs and MES systems, and reserves an API interface for sharing a database with the Marking Machine for Industry 4.0 production lines.
?
Applications
?
- Furniture and Cabinets: 18 mm particleboard + 2 mm PVC edge banding tape, speed 30 m/min, glue seam tensile strength ≥ 80 N. After edge banding, it can directly enter the Laser Marking Machine station for invisible coding, achieving one-stop completion of "edge banding + traceability."
?
- Automotive Parts: 3D contour edge banding of PP tailgate interior panels. The robot, carrying the BF03F, follows a 60 mm undulation, completing the corner turn within 0.1 seconds, replacing the original two Pneumatic Marking Machines' riveting + hot air units, reducing the cycle time per piece by 8 seconds.
?
- Packaging and protection: Pharmaceutical cold aluminum blister pack with 0.2 mm overlap sealing, IP67 sealing rating. The same laser switches back to Laser Marking Machine mode at night to fly-engrave the batch number on the back, truly making BF03F a cross-border bridge connecting "sealing" and "marking".
